Blaze 5 Gaming PC Series
The Chassis Is Where Performance Begins.
At Skytech Gaming, we treat the chassis as a performance component — because it is one. The Blaze 5 series is built on a chassis selected for what it does for the hardware inside: a pre-installed 360mm single-frame intake fan that feeds cool air across the entire graphics card, back-connected motherboard support that removes cable clutter from the airflow path, and 15-degree curved tempered glass that turns disciplined assembly into a showpiece. Every chassis feature translates into a system that runs cooler, looks cleaner, and stays ready for the future.
Why the Chassis Matters in a Prebuilt Gaming PC
Spec sheets celebrate processors and graphics cards, but the chassis quietly decides how much of that performance you actually receive. Airflow design determines whether a flagship GPU holds its clock speeds through hour three of a gaming session or throttles in the first thirty minutes. Cable architecture determines whether air moves freely or fights through clutter. Clearances determine whether next year's upgrade drops in or forces a rebuild. Skytech Gaming selects the Blaze 5 chassis with the same scrutiny we apply to core components, because a premium chassis is performance you keep — every session, every year.

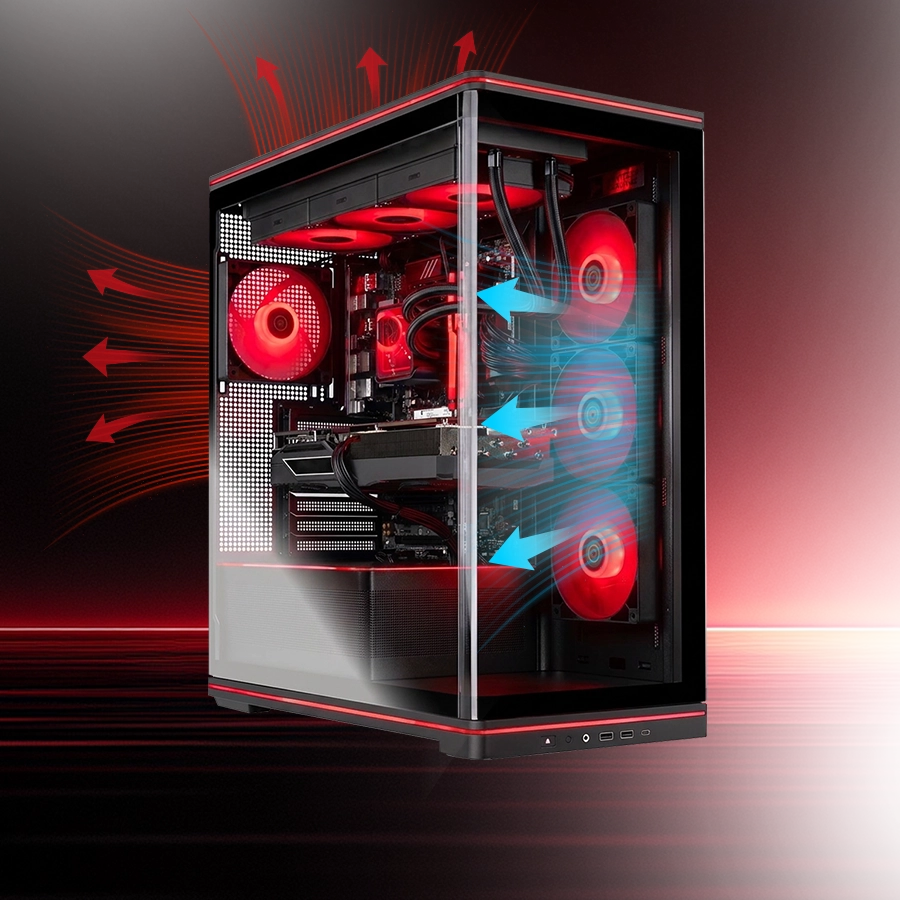

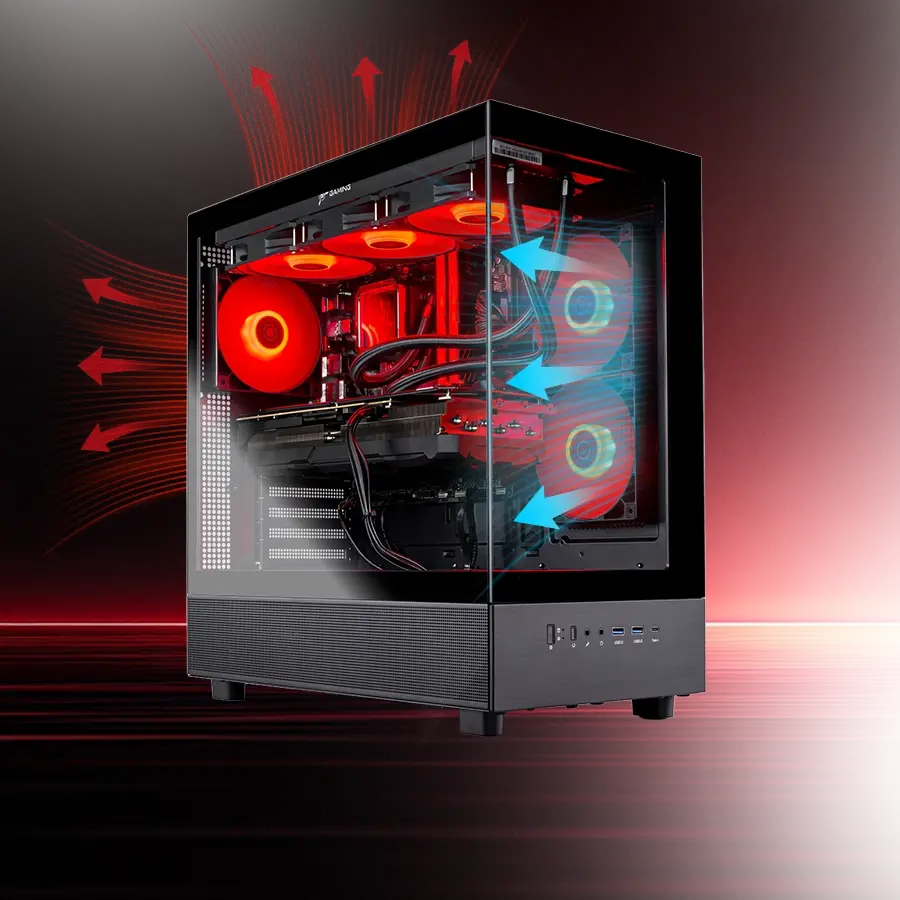

A Wall of Cool Air, Aimed at the Graphics Card
The Blaze 5 chassis ships with a 360mm single-frame side-intake fan — one unified frame where conventional designs use three separate fans. The single-frame construction reduces vibration and resonance, simplifies wiring, and most importantly creates a continuous, even wall of intake air positioned directly opposite the graphics card. The GPU — the hottest, hardest-working component in a gaming PC — receives cool air across its entire length, then a 120mm rear exhaust completes the path. The result: sustained performance deep into marathon sessions, not just in benchmarks.
Back-Connected Architecture: Clean by Design, Not Just by Effort
The Blaze 5 chassis supports back-connected motherboard designs, routing power and data connectors behind the motherboard tray instead of across the main chamber. For the system, this means genuinely unobstructed airflow — no cable bundles disturbing the intake path. For the owner, it means an interior so clean it looks rendered. Skytech Gaming's builders finish the job with professional routing in the concealed channels, so what faces the glass is hardware, light, and nothing else.
A Slim Profile That Gives Up Nothing
At just 239mm wide, the Blaze 5 keeps a slim, desk-friendly footprint — yet the chassis interior still accepts standard ATX motherboards, a 360mm top-mount liquid cooler, and graphics cards up to 430mm. Skytech Gaming chose this chassis because it refuses the usual trade-off between elegance and capability: the system fits gracefully beside your monitor while housing full-scale flagship hardware.
Design & Aesthetics
15-Degree Curved Tempered Glass
The Blaze 5's defining feature is its 15-degree curved tempered glass side panel. Where flat panels show the build from one angle, the gentle curve adds depth, smooths light reflections, and widens the viewing angle — the interior stays on display whether you sit beside the system or see it from across the room. Glass this revealing demands a build worthy of it, which is why every Blaze 5 is assembled to showcase standards: aligned components, hidden cabling, tuned lighting.

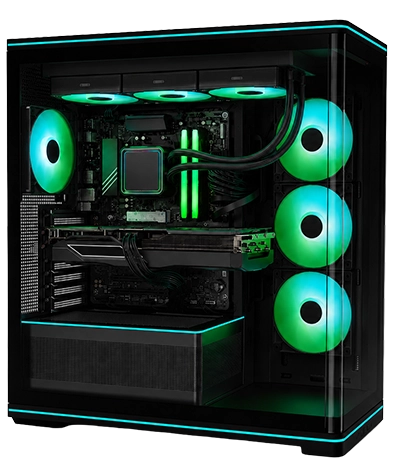

Multi-Horizon ARGB Lighting, Wired by No One
Three independent ARGB zones are built into the chassis itself — along the top rail, the bottom edge, and the PSU shroud — forming continuous horizons of light that frame the hardware from above and below. The lighting connects through a cable-free pogo-pin contact system, so there is not a single visible lighting wire to interrupt the view. Modes cycle from a front-panel LED button, no software required. It is integrated illumination that enhances the build instead of cluttering it.
A Tiered Stage for Personal Expression
The chassis's tiered bottom design creates a dedicated display surface inside the main chamber — space for a collectible figure, a custom nameplate, or an accent piece that makes the system unmistakably yours. Behind the curved glass and framed by horizon lighting, it turns the Blaze 5 from a gaming PC into a personal exhibit.
Performance & Cooling
Cooling Headroom for Every Configuration
The Blaze 5 chassis accommodates a top-mount radiator up to 360mm — the ideal exhaust position for liquid cooling — plus a side position up to 240mm and a 120mm rear mount. Air-cooled builds enjoy clearance for tower coolers up to 180mm. This range lets Skytech Gaming match every Blaze 5 configuration with thermal capacity suited to its exact hardware, with headroom to spare when owners upgrade down the road.

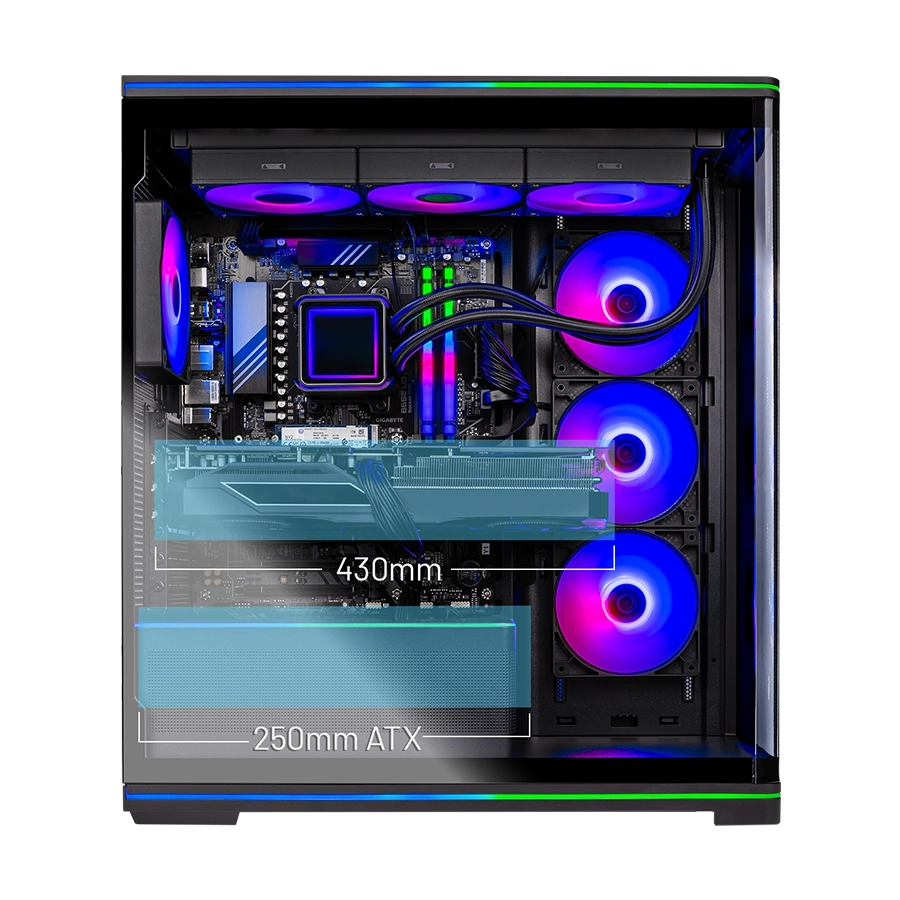

430mm GPU Clearance, Ready for the Future
With 430mm of graphics card clearance, the Blaze 5 chassis accepts the largest flagship GPUs made today — including oversized triple-fan designs — and leaves margin for whatever comes next. Paired with the 360mm intake wall feeding the card directly, big GPUs do not just fit; they breathe. When upgrade time arrives years from now, the chassis will not be the bottleneck.
Protected and Serviceable for the Long Run
Dust filters at the top and bottom intercept particles before they settle on fans and radiators, preserving thermal performance over years of use. Inside, seven PCIe expansion slots and dedicated drive bays leave room for storage and add-in cards as needs grow. A chassis that is easy to keep clean and easy to expand is a system that stays fast — and Skytech Gaming builds on it for exactly that reason.

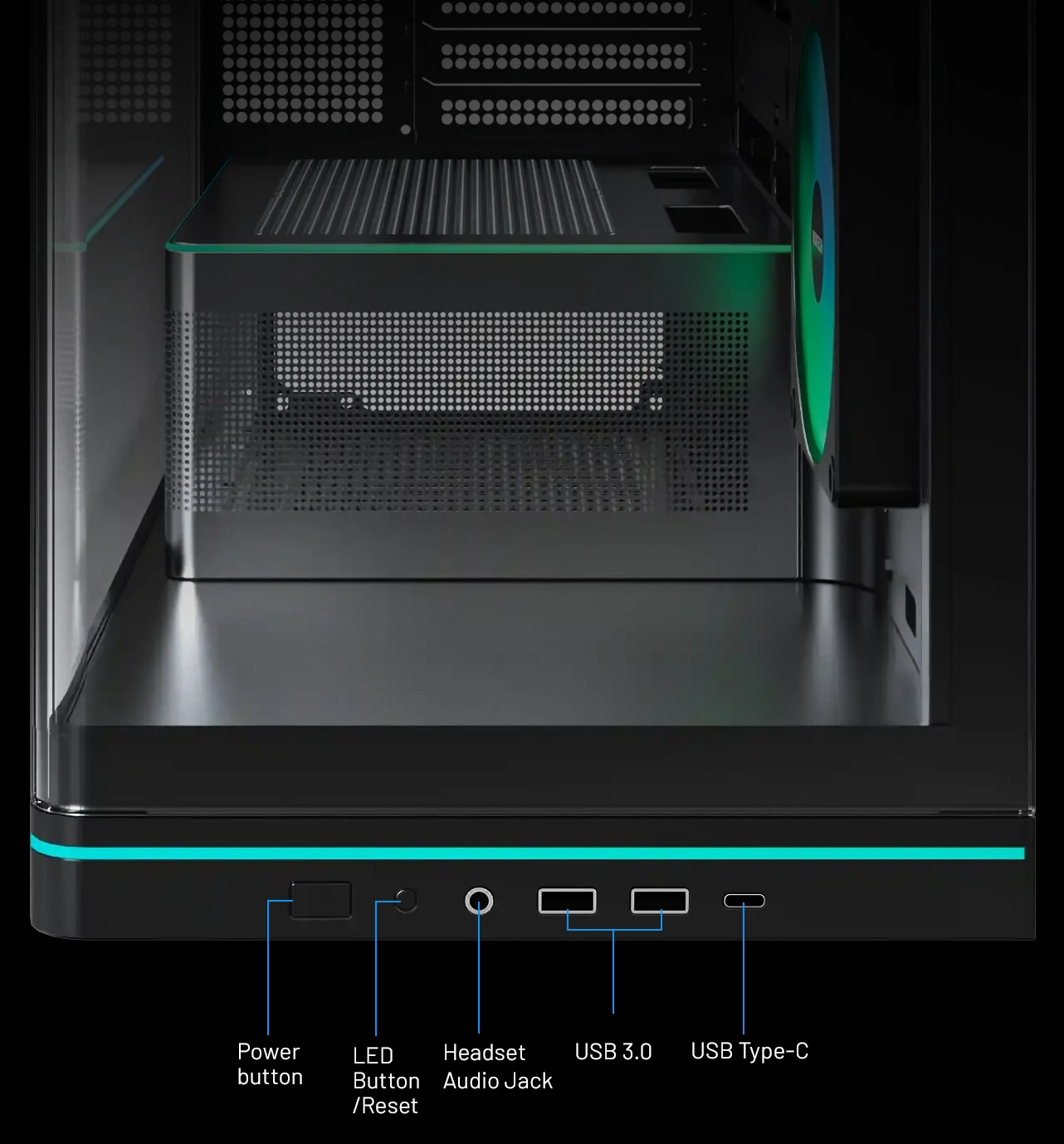

Rich Front I/O Panel
Everything You Need, Right at Your Fingertips
Modern connectivity for streaming gear, capture cards, VR headsets, and high-speed external drives. The dedicated LED control button cycles the multi-horizon lighting modes directly from the front panel — match the mood to the game without opening any software.
- ✦ USB 3.0 Ports × 2
- ✦ USB Type-C Port × 1
- ✦ Headset Audio Jack × 1
- ✦ LED Control Button × 1
- ✦ Power Button
Blaze 5 Chassis Showcase
A showcase of the Blaze 5 chassis design, highlighting the 15-degree curved tempered glass, multi-horizon ARGB lighting, 360mm single-frame intake fan, back-connected motherboard architecture, and tiered display surface.
Configurations
- New Release ! Montech TG3
BLAZE 5- Montech TG3
- Operating System
- Windows 11 Home
- CPU
- AMD Ryzen 7 7800X3D
- Graphics
- Nvidia RTX 5070 12GB
- RAM
- 32GB DDR5 6000MHZ RGB
- Primary Hard Drive
- 2 TB NVMe Gen4
- New Release ! Montech TG3
Blaze 5- Montech TG3
- Operating System
- Windows 11 Home
- CPU
- AMD R7 9800X3D
- Graphics
- Nvidia RTX 5070 12GB
- RAM
- 32GB DDR5 6000MHZ RGB
- Primary Hard Drive
- 2 TB NVMe Gen4
- New Release ! Montech TG3
BLAZE5- Montech TG3
- Operating System
- Windows 11 Home
- CPU
- Intel i7 14700F
- Graphics
- Nvidia RTX 5070 12GB
- RAM
- 16GB DDR4 3200MHZ Non-RGB
- Primary Hard Drive
- 1 TB NVMe Gen4
- New Release ! Montech TG3
Blaze5- Montech TG3
- Operating System
- Windows 11 Home
- CPU
- Intel i7 14700F
- Graphics
- Nvidia RTX 5070 12GB
- RAM
- 32GB DDR4 3200MHZ Non-RGB
- Primary Hard Drive
- 2 TB NVMe Gen4
- New Release ! Montech TG3
Blaze 5-Montech TG3
- Operating System
- Windows 11 Home
- CPU
- AMD R7 9800X3D
- Graphics
- Nvidia RTX 5070 Ti 16GB
- RAM
- 32GB DDR5 6000MHZ RGB
- Primary Hard Drive
- 2 TB NVMe Gen4
Chassis Specifications
- Chassis Type
- Mid Tower ATX
- Motherboard Support
- ATX / Micro-ATX / Mini-ITX (back-connected supported)
- Dimensions (L × W × H)
- 465 × 239 × 529 mm
- Color Options
- Black
- Side Panel
- 15° curved tempered glass
- Maximum GPU Length
- 430 mm
- Fits the largest flagship GPUs
- Maximum CPU Cooler Height
- 180 mm
- Maximum PSU Length
- 250 mm (ATX)
- PCIe Expansion Slots
- 7
- Storage Bays
- 1 × 3.5" HDD + 2 × 2.5" SSD
- Front I/O
- Power Button, LED Button, USB 3.0 × 2, USB-C × 1, Audio × 1
- Dust Filters
- Top / Bottom
- Pre-Installed Fans
- Side: 1 × 360mm single-frame ARGB (reversed intake) — Rear: 1 × 120mm ARGB (exhaust)
- Cooling Support
- Top: 3 × 120mm / 3 × 140mm fans — radiator 120 / 140 / 240 / 280 / 360mm
- Side: 3 × 120mm fans — radiator 120 / 240mm
- PSU Shroud: 2 × 120mm fans
- Rear: 1 × 120mm / 1 × 140mm fan — radiator 120mm
- ARGB Lighting
- Three-zone multi-horizon (top rail, bottom edge, PSU shroud) with cable-free pogo-pin connection
